코리아밸브 앤드 피팅
CPC 퀵커플링
CHEMQUICK&DRUMQUICK

▶Polypropylene(CQH06)

  • img


    Color Coding

  • ■ Application


    • - DI water spray gun lines
    • - Portable chemical carts
    • - Drum chemical & vent lines
    • - Waste drain lines
    • - QA fluid sampling lines
    • - Photo-resist lines
    • - Peripheral part cleaners
    • - Chemical delivery systems
    • - CMP filter quick-changes
    • - Pump connections
    • - CDA or nitrogen lines
    • - Plating equipment
    • - Wet bench connections
    • - IBC (Tote) connections
    • - Manual bottle filling
    • - Laboratory uses
  • ■ Specification


    Operating Pressure : 0 - 80 psig
    Operating Temperature : 0 - 107℃
    Cv : 1.6
    Size : 1/4" - 3/4" Flare
    Seal Materials : Viton, EPDM, Aegis, Chemraz, PFA Encapsulated Viton
    Color Coding (Thumb Latch & Nut) : Standard colors- Natural (Option : Red, Green, Blue, Yellow, Brown, Black)
    Packaging : Couplings are assembled in the CPC clean environment, leak tested, then Double bagged in Class 100, anti-static clean room bags.

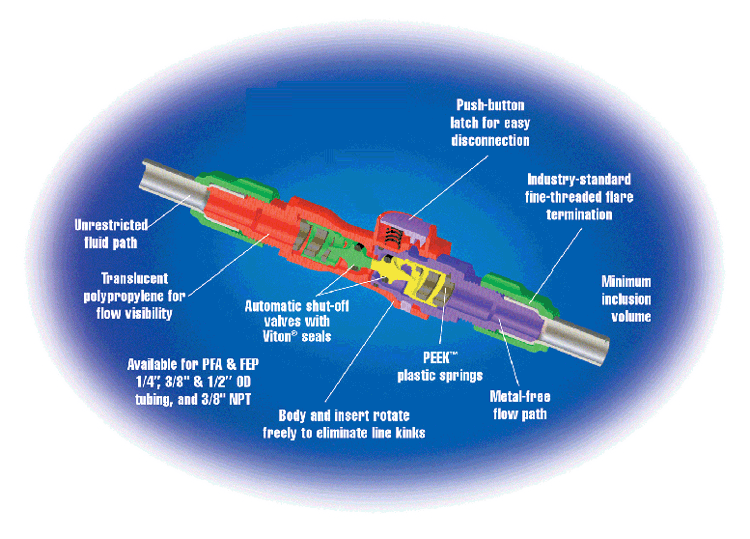

  • CQH06 Cutaway

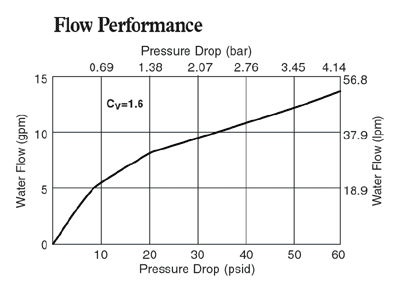

  • Flow Performance

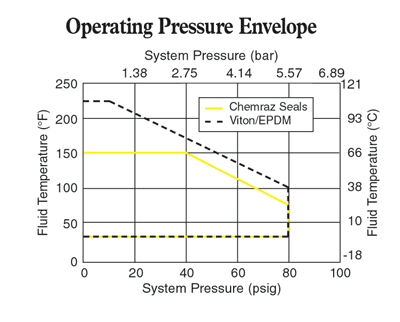

  • Operating Pressure Envelope


▶PVDF(CQV06)

  • img


    CQV06 Couplaing Body

    CQV06 Coupling Insert

    CQV06 PM Coupling Body

  • ■ Application


    • - DI water spray gun lines
    • - Portable chemical carts
    • - Drum chemical & vent lines
    • - Waste drain lines
    • - QA fluid sampling lines
    • - Photo-resist lines
    • - Peripheral part cleaners
    • - Chemical delivery systems
    • - CMP filter quick-changes
    • - Pump connections
    • - CDA or nitrogen lines
    • - Plating equipment
    • - Wet bench connections
    • - IBC (Tote) connections
    • - Manual bottle filling
    • - Laboratory uses
  • ■ Specification


    Operating Pressure : 0 - 80 psig
    Operating Temperature : 0 - 107℃
    Cv : 1.6
    Size : 1/4" - 1/2" Flare
    Seal Materials : Viton, EPDM, Aegis, Chemraz, PFA Encapsulated Viton
    Color Coding (Thumb Latch & Nut) : Standard colors - Natural (Option : Red, Green, Blue, Yellow, Brown, Black)
    Packaging : Couplings are assembled in the CPC clean environment, leak tested, then Double bagged in Class 100, anti-static clean room bags

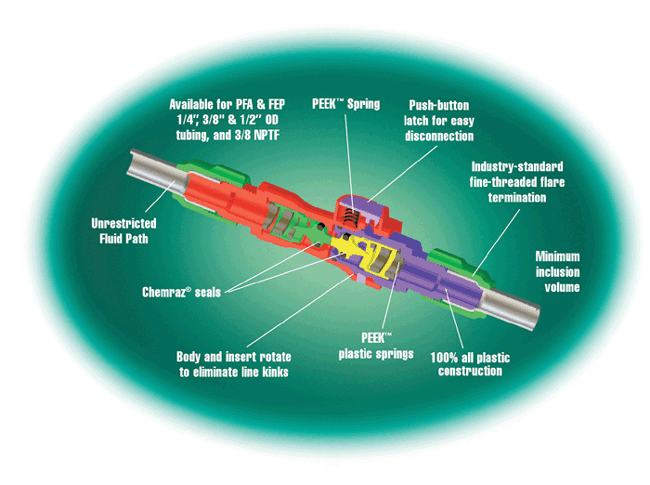

  • CQV06 Cutaway

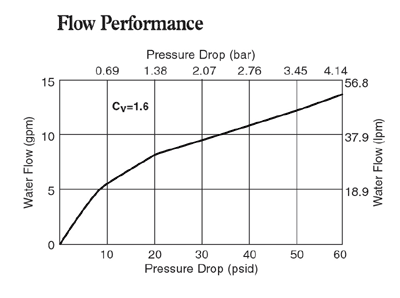

  • Flow Performance

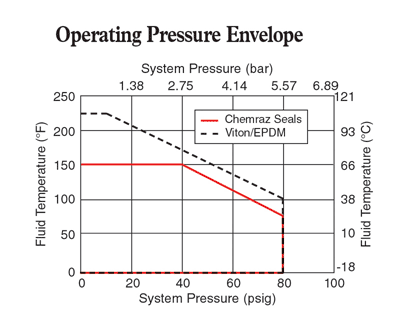

  • Operating Pressure Envelope


▶Polypropylene(CQG06)

  • img


    CQV06 Couplaing Body

    CQV06 Coupling Insert

    CQV06 PM Coupling Body

    • ■ Feature


      • - Spring-free flow path
      • - High flow capacity
      • - Non-spill (even under pressure)
      • - Double-side shut off
      • - Panel Mounting option

    ■ Specification


    Size : 3/8" - 3/4"
    Operating Pressure : 0 ~ 80 psig
    Operating Temperature : 1.6
    Spillage : 0.05cc/disconnect
    CV : 3.2
    Packaging : Couplings are assembled in the CPC clean controlled environment, 100% pressure and leak tested, then double bagged in Class 100, Anti-Static clean room bag

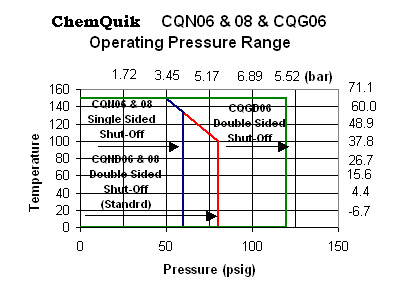

  • Operating Pressure Range

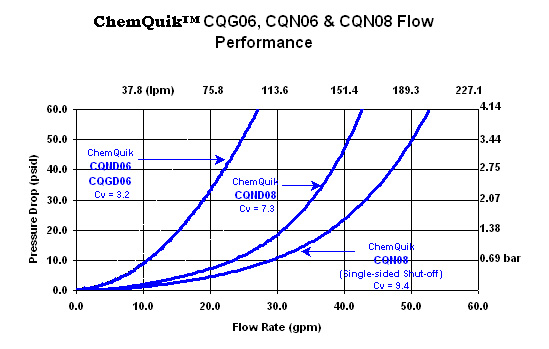

  • Flow Performance

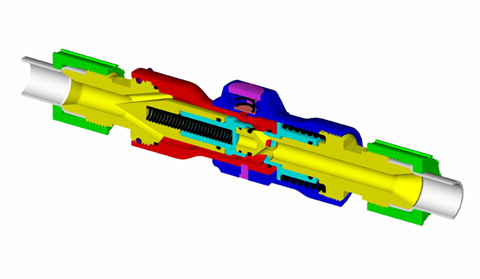

  • CQG06 Cutaway
